LGA 1700 Socket H610 Motherboard DDR4 Support 12th Gen Core With M.2 Slots

Place of Origin China
Brand Name PCWINMAX
Certification CE FCC
Model Number H610
Minimum Order Quantity 2
Price 39.99~69.99$
Delivery Time 3~7 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 piece 5days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ports SATA,PCI-Express X16 Maximum Ram Capacity 64GB
Application Desktop/home/workstation Chipset Manufacturer Intel
Socket Type LGA1700 Form Factor Micro-ATX
Memory Type DDR4 Graphics Card Type Integrated-need CPU Support
Highlight

LGA 1700 Socket H610 Motherboard

,

H610 Motherboard With M.2 Slots

Leave a Message
Product Description

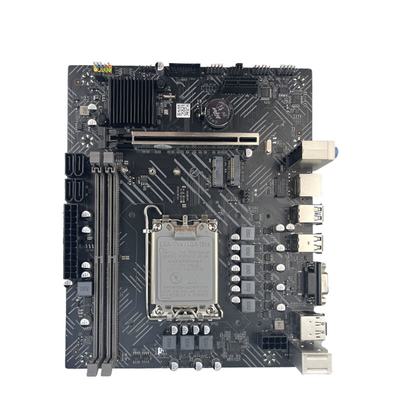

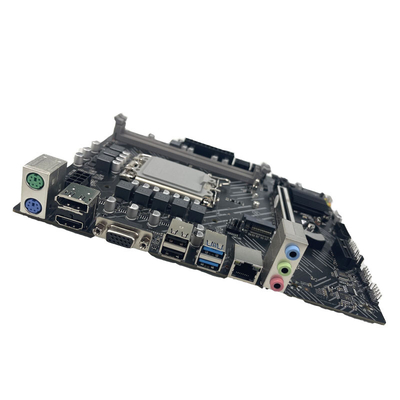

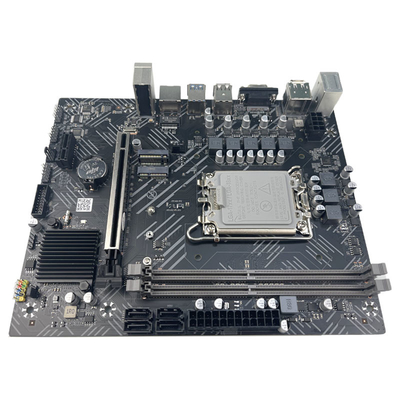

PCWINMAX Motherboard H610 Ddr4 12th Gen Core LGA 1700 Socket with M.2 Slots PCIe 4.0 mATX Mainboard



Description:

The PCWINMAX H610 DDR4 Motherboard is a high-performance motherboard designed for 12th Gen Intel Core processors, offering exceptional reliability, speed, and compatibility. Featuring an mATX form factor and the LGA 1700 socket, this motherboard is suitable for various applications, including gaming, content creation, and general computing.



Features:

- Supports 12th Gen Intel Core Pentium Celeron processors for LGA 1700 socket.
- Supports DDR4 memory for enhanced system performance.
- Core Boost technology ensures optimal power delivery, enabling the motherboard to support more cores and provide better overall performance.
- Memory Boost technology provides a pure data signal, ensuring the best performance, stability, and compatibility for DDR4 memory modules.

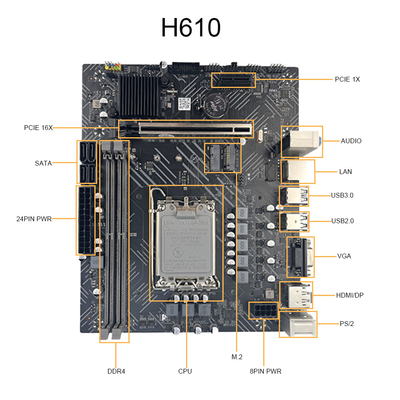

Parameter:

Chipset
Intel H610
Audio Chip
Realtek ALC897 HD Audio Chip
Ethernet Chip
Intel I219V Gigabit LAN Chip
CPU Model
Intel Core i7/Core i5/Core i3/Pentium/Celeron
CPU Platform
Intel LGA1700 12th Gen CPU TDP:65W
Memory Types
DDR4 2666MHz/2933MHz Max:64G
Memory Channel
2×DDR4 SO-DIMM
WiFi Slot
1×M.2 2230 size(support WIFI/BT/CNVI)
SSD Slot
1×M.2 2280 size(support SATA/NVME Co-Lay)
Input Interface
1×DC-In Power Interface(12-19V)
Display Interface
1×HD Port,1×HD Port(other side)
Interface (Optional)
1×COM Port(An optional for VGA)
Ethernet Interface
1×RJ45 Port
USB Interface
4×USB3.0 Port
Audio Interface
1×OUT Port,1×MIC Port



LGA 1700 Socket H610 Motherboard DDR4 Support 12th Gen Core With M.2 Slots 0LGA 1700 Socket H610 Motherboard DDR4 Support 12th Gen Core With M.2 Slots 1

Quality Assurance:

To ensure optimal performance, all products undergo rigorous testing before shipment. This product is thoroughly tested to guarantee its reliability, stability, and compatibility. Rest assured that you are receiving a top-quality product that meets industry standards.



Our advantages:

Superior Quality and Customization
As an original manufacturer with over 20 years of industry experience, we provide premium quality products that can be fully customized to your exact specifications.
Competitive Pricing
By working directly with the manufacturer, you get the most favorable pricing on unique, tailored solutions without any middleman markups.
Fast Turnaround Time
We pride ourselves on our ability to deliver finished products within 3-7 working days to meet your rapid deployment needs.
Global Reach
With happy customers from over 200 countries, we have the proven capability to reliably ship anywhere in the world.
Trust Our Experience and Dedication
With two decades of focus in this market, we have the proven track record required to expertly guarantee the purchase well.



FAQ

1.Do your products come with a warranty?
Yes, all our products are backed by a comprehensive warranty and professional after-sales support service. Contact us for any issues or questions.
2.How do you ensure quality?
We have rigorous quality control including pre-production samples, final inspections, and testing before any product ships to customers. This guarantees you receive electronics that work flawlessly.
3.What products are available?
We offer a wide range of computer components including graphics cards, motherboards, RAM, SSDs, HDDs, CPUs, and more. Ask our sales team about our full catalog.
4.What additional services are offered?
Samples - Test out products before purchase
Daily price lists - Stay updated on the latest pricing
Technical support - Our experts are here to help
